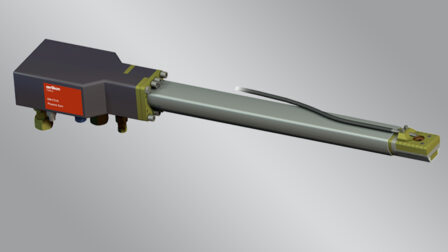

The SM-F210 spray gun is ideal for use on complex geometries and internal bore applications such as turbine transition ducts, compressor casings, combustion liners and engine block cylinder bores.

Key characteristics
  • Ideal for mass-production spraying
  • Specially cooled nozzle plate for cooler gun head operation
  • The gun shaft is available in various lengths
  • Angled gun shaft option sprays at a 20° angle
  • Highly efficient deposition and powder throughput reduces operating costs
Shaft lengths options
  • 650 mm (25.3 in)
  • 450 mm (17.5 in)
  • 250 mm (9.75 in)
Maximum power 16 kW
Process gasses Argon, Helium, Hydrogen, Nitrogen
Weight 2.5 – 3 kg (5 – 6.6 lb)
Controller compatibility MultiCoat™, UniCoat™
Minimum bore diameter 60 mm (2.36 in)
