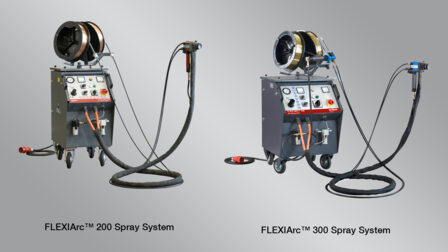

FlexiArc™ 200 and FlexiArc 300 Electric Arc Wire

FlexiArc™ 200 and FlexiArc 300 Electric Arc Wire

The FlexiArc system offers the flexibility to apply coatings on-site and in-shop using both hard and soft wires.

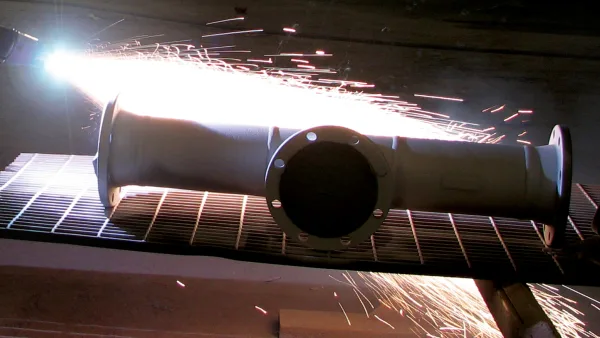

The application range includes coatings for corrosion control, wear protection, lubricous surfaces on bearing seats, bond coats for paints and other coatings with high output rates.

Specifications
Output Amperage 200 A or 300 A
Spray Gun Handheld LD/U2
Wire Drive Pneumatic Pull System
Spool Holder/Decoiler included
Wire Types All solid electric arc wires
Extension Modules

Extension 300 / 300 mm (11.8 in)

Minimum bore size: 100 mm (3.9 in)

Spray Angle: 70°

Extension 500 / 500 mm (19.6 in)

Minimum bore size: 100 mm (3.9 in)

Spray Angle: 70°
