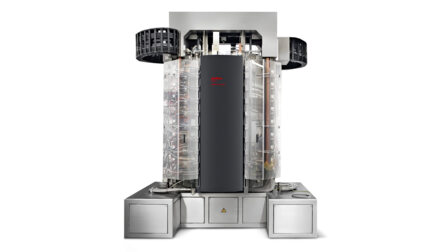

METAPLAS.DOMINO giga flex High volumes and huge parts for mass production


The METAPLAS.DOMINO giga flex is the giant among our PVD systems. Parts weighing up to 3 tons and 1.5 m high can be coated just as effectively as serial products from the automotive industry with lowest cost per piece.

The system produces APA arc layers and magnetron sputter layers using the new ADVANCED AEGD etching technology and can be upgraded to a combined system with arc and sputtering, e.g. for decorative and other coating applications.

  • APA Arc Technology with up to 4 flanges and/or magnetron sputtering
  • Loads of up to 3 tons and components with a diameter of 1200 mm x 1500 mm height
  • New etching technology ADVANCED AEGD
  • Retrofitting of nitriding and sputtering technology possible
  • Lowest cost per piece when fully loaded
Properties METAPLAS.DOMINO giga flex
Usable coating volume Ø 1,200 mm x 1,500 mm
Available coating modules Arc, Sputter, HiPIMS, HI3, Nitriding
APA arc evaporators 8 to 32
Magnetron sputter sources 1 to 4
Available power supplies DC, DC pulse, middle frequency (MF), HiPIMS, (RF upon request)
Available BIAS Bipolar pulse, middle frequency
Plasma cleaning All systems equipped with patented power etching process AEGD
Standard substrate table
(others upon request)
Up to 32 shafts
