BALIQ CARBOS STAR The amorphous carbon coating for maximum load-bearing capacity

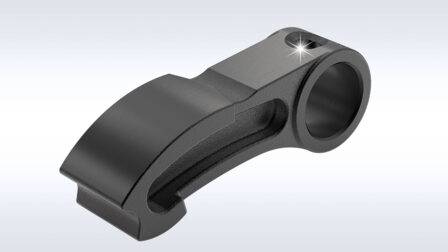

BALIQ® CARBOS or BALIQ® CARBOS STAR on finger followers show superior wear resistance to hydrogenated DLC coatings at highest contact pressures

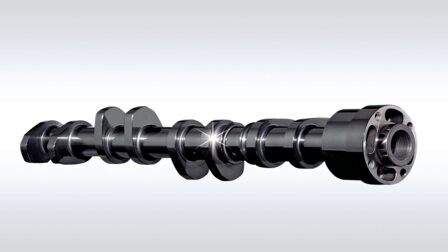

BALIQ® CARBOS STAR on cam shafts for racing engines show improved performance when compared to conventional hydrogenated DLC coatings

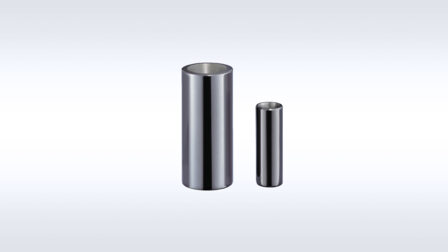

Piston pins of racing engines coated with BALIQ® CARBOS or BALIQ® CARBOS STAR show less wear and higher lifetime compared to hydrogenated DLC coatings
BALIQ® CARBOS STAR is used for highly loaded precision valves, e.g for HPLC High Performance Liquid Chromatography valves, where hardenss, toughness low friction and smooth surfaces are required
BALIQ® CARBOS STAR outperforms TiN and CrN coatings in highly loaded valve seats due to its high hardness, low friction and  toughness

The ideal coating for maximum load-bearing capacity depends to a large extent on the substrate used. Developed for softer substrates such as stainless steel and titanium, or substrates that are subject to continuous impacts, BALIQ® CARBOS STAR uses an additional chromium nitride-based layer to resist extreme loads.

This modified coating increases load-bearing capacity, provides the required surface hardness and significantly enhances the performance of the tribologically effective carbon coating. BALIQ® CARBOS STAR offers superior tribological performance and is therefore ideal for components subjected to extremely high loads.

High friction and wear are the most demanding challenges in applications such as racing car engines. When drivers push their racing cars to the limit, critical components such as piston pins, camshafts and finger followers need to deliver maximum performance and withstand extreme loads.

  • An additional hard, durable chromium nitride (CrN) base layer provides the required surface hardness and increases the load-bearing capacity of the carbon coating
  • BALIQ® CARBOS STAR provides a unique combination of high hardness, low wear rate, low friction coefficient and low roughness
  • Markedly improved performance versus standard DLC´s for demanding tribological applications
  • Low process temperature, enabling a wider range of substrate materials
  • Perfectly suited for softer substrates such as stainless steel and titanium
